MOBILE
| Mobile module |
4G (LTE) - Cat 1 up to 10 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps |
| Bridge |
Direct connection (bridge) between mobile ISP and device on LAN |
| Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
| SMS/Call |
SMS status, SMS configuration, Call utilities |
NETWORK
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, MQTT |
| Routing |
Static routing |
| Connection monitoring |
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
| Firewall |
Port forwards, traffic rules, custom rules |
| DHCP |
Static and dynamic IP allocation |
| QoS / Smart Queue Management (SQM) (planned) |
Traffic priority queuing by source/destination, service, protocol or port |
| DDNS |
Supported >25 service providers, others can be configured manually |
SECURITY
| Authentication |
Pre-shared key, digital certificates, X.509 certificates |
| Firewall |
Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
| Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN
| OpenVPN |
Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec |
IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| GRE |
GRE tunnel |
| PPTP, L2TP |
Client/Server services can run simultaneously |
SERIAL COMMUNICATION MODES
| Modes |
Console, OverIP, Modem (Full or Partial control), Modbus RTU master, Modbus gateway, NTRIP client |
MODBUS
MODBUS TCP SLAVE
| ID filtering |
Respond to one ID in range [1;255] or any |
| Allow remote access |
Allow access through WAN |
| Custom registers |
Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality |
MODBUS TCP MASTER
| Supported functions |
01, 02, 03, 04, 05, 06, 15, 16 |
| Supported data formats |
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
MODBUS RTU MASTER
| Suported baud rates |
From 300 to 115200 |
| Supported functions |
01, 02, 03, 04, 05, 06, 15, 16 |
| Supported data formats |
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| Number of data bits |
From 5 to 8 |
| Number of stop bits |
1 or 2 |
| Parity |
None, Even, Odd |
| Flow control |
None, RTS/CTS, Xon/Xoff |
MODBUS DATA TO SERVER
MONITORING & MANAGEMENT
| WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
| FOTA |
Firmware update from sever, automatic notification |
| SSH |
SSH (v1, v2) |
| SMS |
SMS status, SMS configuration |
| MQTT |
MQTT Broker, MQTT publisher |
| JSON-RPC |
Management API over HTTP/HTTPS |
| Modbus |
Modbus TCP status/control |
| RMS |
Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS
| CPU |
ARM Cortex-A7 1.2 GHz CPU |
| RAM |
128 MB (50 MB available for userspace) |
| FLASH memory |
512 MB (200 MB available for userspace) |
FIRMWARE / CONFIGURATION
| WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
| FOTA |
Update FW/configuration from server |
| RMS |
Update FW/configuration for multiple devices |
| Keep settings |
Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Supported languages |
Busybox shell, Lua, C, C++ |
| Development tools |
SDK package with build environment provided |
INPUT/OUTPUT
| Configurable I/O |
2 x Digital Inputs/Outputs |
| Events |
SMS status |
POWER
| Connector |
4 pin industrial DC power socket |
| Input voltage range |
9 - 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max |
| Power consumption |
< 5 W |

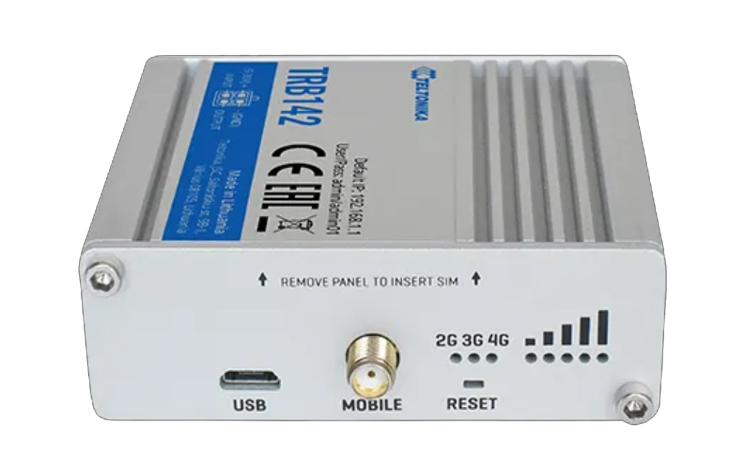

PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
| RS232 |
RS232 interface, DB9 socket, 5 pin configuration with flow control |
| I/Os |
2 Inputs/Outputs pin on 4 pin power connector |
| USB |
Virtual network interface via USB |
| Status LEDs |
3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
| SIM |
1 x SIM slot (Mini SIM -2FF), 1.8 V/3 V |
| Power |
4 pin DC connector with 2 x configurable Digital Inputs/Outputs |
| Anntenas |
1 x SMA for LTE |
| Reset |
Restore factory settings button |
PHYSICAL SPECIFICATIONS
| Casing material |
Aluminum housing |
| Dimensions |
64.4 x 74.5 x 25 mm (L x W x H) |
| Weight |
135 g |
| Mounting options |
Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
OPERATING ENVIRONMENT
| Operating temperature |
-40°C to 75°C |
| Operating humidity |
10 % to 90 % non-condensing |
| Ingress Protection Rating |
IP30 |
REGULATORY & TYPE APPROVALS
| Regulatory |
CE/RED, EAC, RoHS, WEEE |
EMI
| Standards |
Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
| ESD |
EN 61000-4-2:2009 |
| RS |
EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT |
EN 61000-4-4:2012 |
| Surge protection |
EN 61000-4-5:2014 |
| CS |
EN 61000-4-6:2014 |
| DIP |
EN 61000-4-11:2004 |
RF
| Standards |
EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
SAFETY
| Standards |
IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017, EN 50385:2017, EN 62232:2017 |
