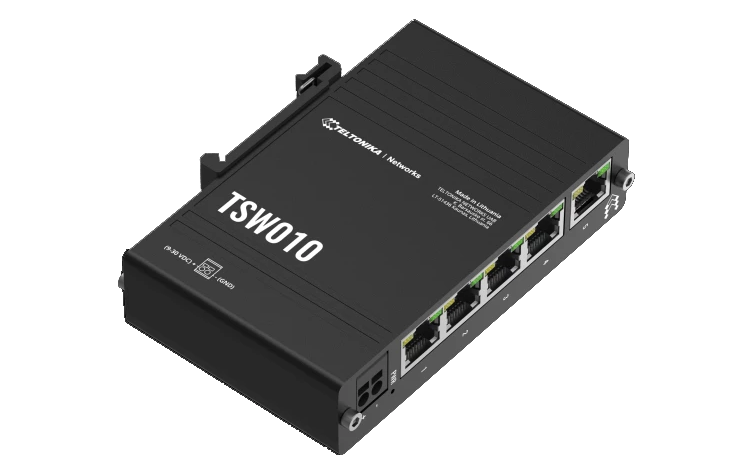

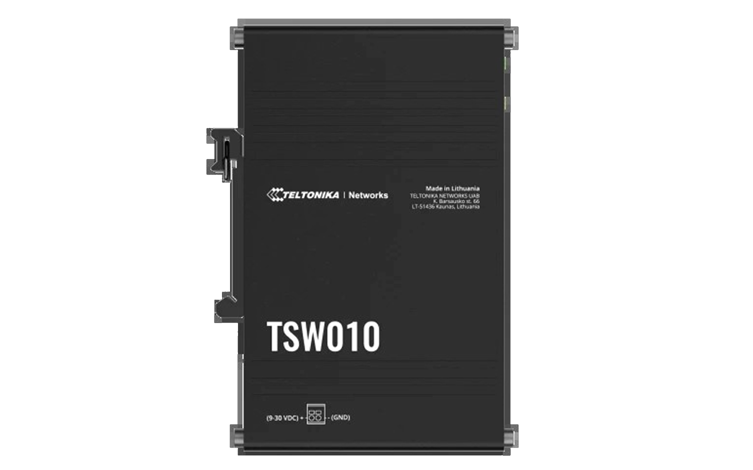

DIN RAIL ETHERNET SWITCH TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

  • No additional configuration needed

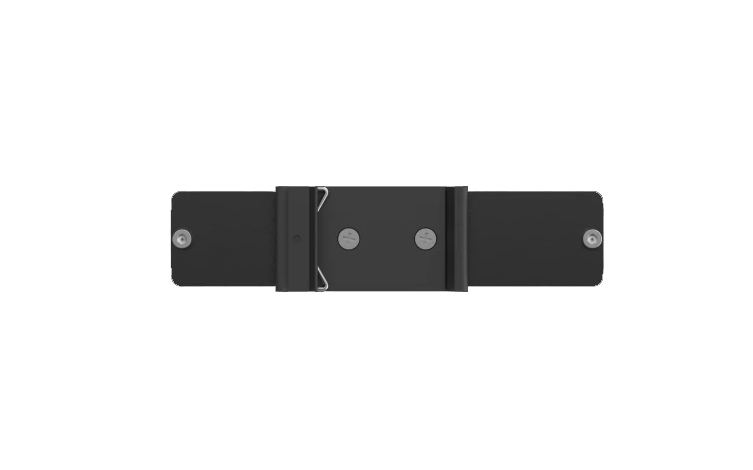

  • Integrated DIN rail bracket and surface mounting options
  • Anodized aluminum housing and panels
  • 5 x Ethernet ports with speeds of up to 100 Mbps

ETHERNET

LAN ETH - 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover IEEE 802.3 series standards - 802.3i, 802.3u, 802.3x, 802.3az

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking) 1 Gbps
Jumbo frame support 2048 bytes
MAC address table size 2K entries

POWER

Connector 2-pin industrial DC power socket
Input voltage range 9-30 VDC
PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption (idle/max no PoE/max) Idle: 0.3 W / Max: 0.9 W

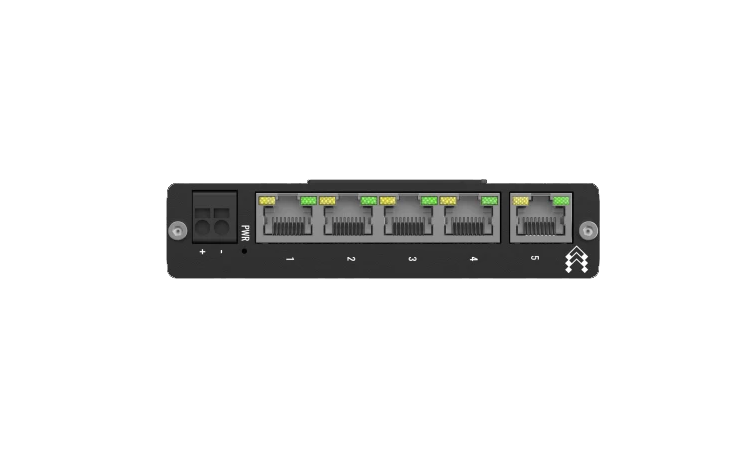

PHYSICAL INTERFACES (PORTS, LEDS)

Ethernet 5 x RJ45 ports, 10/100 Mbps
Status LED❜s 1 x Power LED, 10 x ETH status LEDs❜s
Power 1 x 2-pin industrial DC power socket

PHYSICAL SPECIFICATIONS

Casing material Aluminium housing
Dimensions 113.1 x 27.4 x 80.5 mm(L x W x H)
Weight 146.5 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40°C to 75°C
Operating humidity 10 % to 90 % non-condensing
