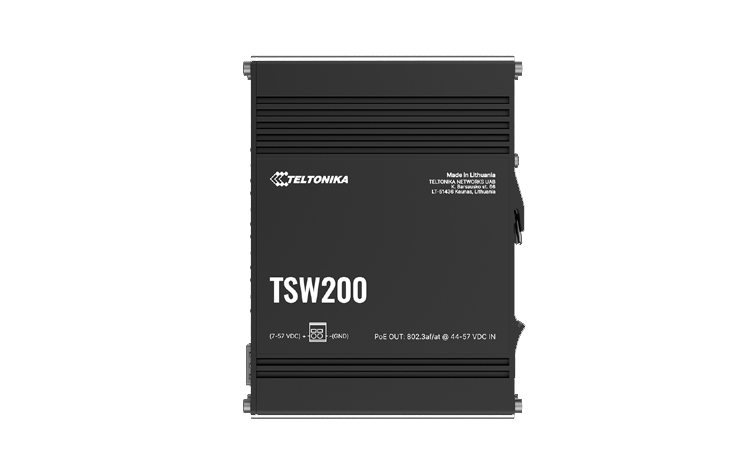

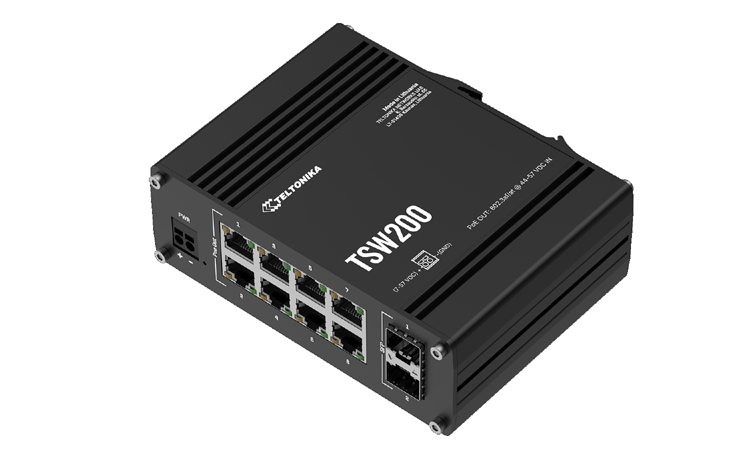

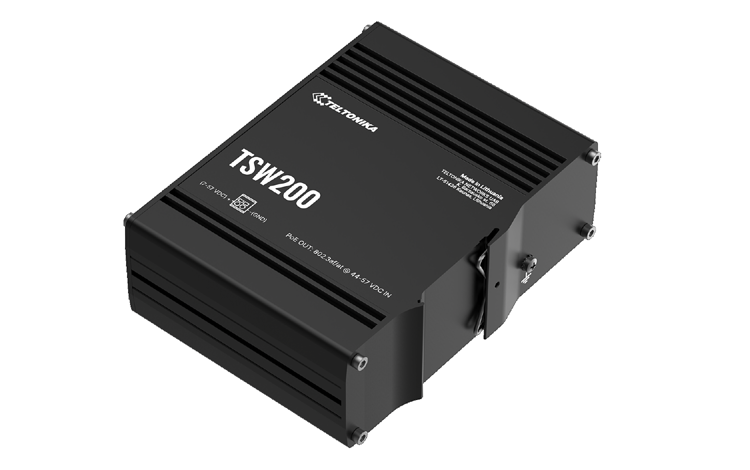

TSW200 is the first industrial grade switch in the Teltonika Networks portfolio with eight Gigabit Ethernet ports that support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.

  • TSW200 is industrial unmanaged switch from Teltonika Networks.
  • TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
  • This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

ETHERNET

LAN 8 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber 2 x SFP ports

POE

PoE ports Port 1- 8
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking) 20 Gbps
Packet buffer 128 KB
Jumbo frame support 9216 bytes
MAC address table size 2K entries

POWER

Connector 2 pin industrial DC power socket
Input voltage range 7-57 VDC
Input voltage range for PoE 44-57 VDC
Power consumption (idle/max no PoE/max) 1,81 W/5.5 W/245.5 W

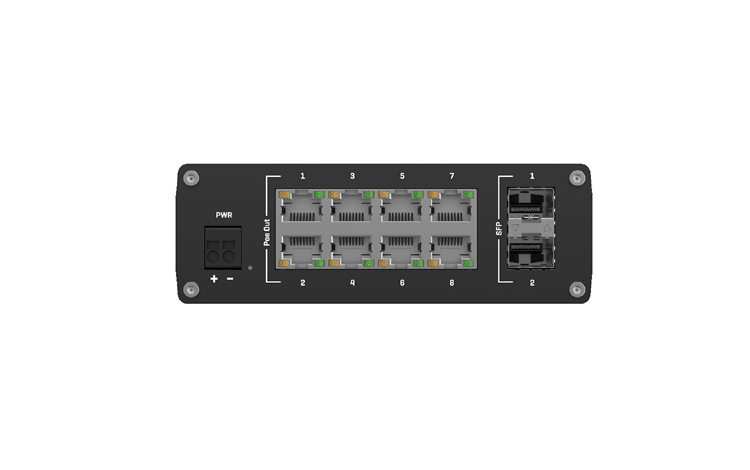

PHYSICAL INTERFACES (PORTS, LEDS)

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fiber 2 x SFP ports
Status LED❜s 1 x Power LED, 16 x LAN status LED❜s, 2 x SFP status LED❜s
Power 1 x 2 industrial DC power socket

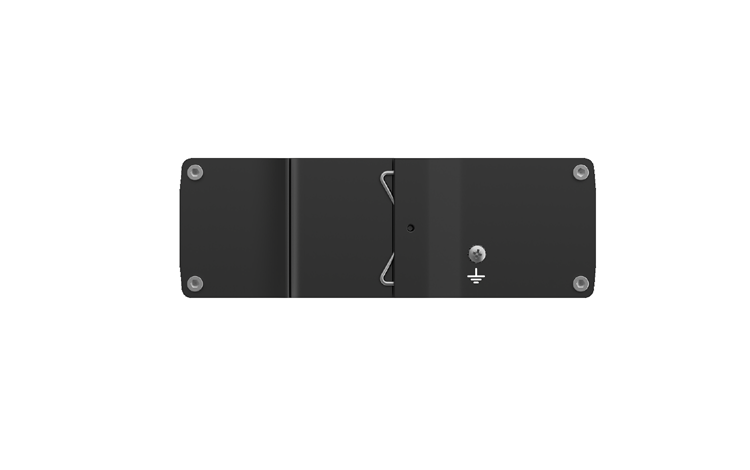

Ground 1 x Grounding screw

PHYSICAL SPECIFICATIONS

Casing material Full aluminium housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 456 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40°C to 75°C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
